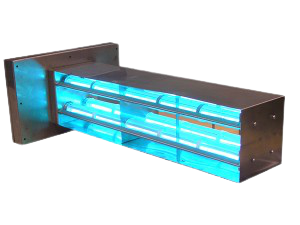

The PHI-CML™ Commercial air purification units by RGF® are designed for installation within commercial and industrial HVAC systems. PHI-CML™ systems utilize RGF’s PHI-CELL® technology to produce low levels of airborne gaseous hydrogen peroxide for distribution by the HVAC system throughout the air-conditioned space. Each PHI-CML™ system is delivered fully assembled for easy installation in the supply plenum providing continuous air purification to reduce airborne and surface bacteria, viruses, odors, and mold
within the treated space.
CML-**
120-277 VAC, 50/60 Hz
18,000-25,000 hrs.
Stainless steel / Polymers
1 year (U.S. only)
Food Processing plant operations where a ducted HVAC system exists
| Model # | CML-** | ||
| Volts | 120-277 VAC, 50/60 Hz | ||
| Recommended Cell Replacement | 18,000-25,000 hrs. | ||
| Installation | In-Line | ||
| Material | Stainless steel / Polymers | ||
| Controls | Indicator lights | ||
| Warranty | 1 year (U.S. only) | ||
| Options | NEMA 4X enclosure (for outdoor installation) | ||
| Engineered to fit specific applications in food processing facilities. Contact your RGF representative for sizing. | |||
| Commercial 35 – Housing is 35″ L | # of 35″ cells | # of 14″ cells | CFM Coverage |
| CML-140 | 1 | 3 | 12,500 |
| CML-125 | 2 | 0 | 14,000 |
| CML-150 | 2 | 1 | 15,000 |
| CML-180 | 2 | 2 | 17,500 |
| CML-190 | 3 | 0 | 19,000 |
| CML-215 | 3 | 1 | 21,000 |
| CML-250 | 4 | 0 | 25,000 |
